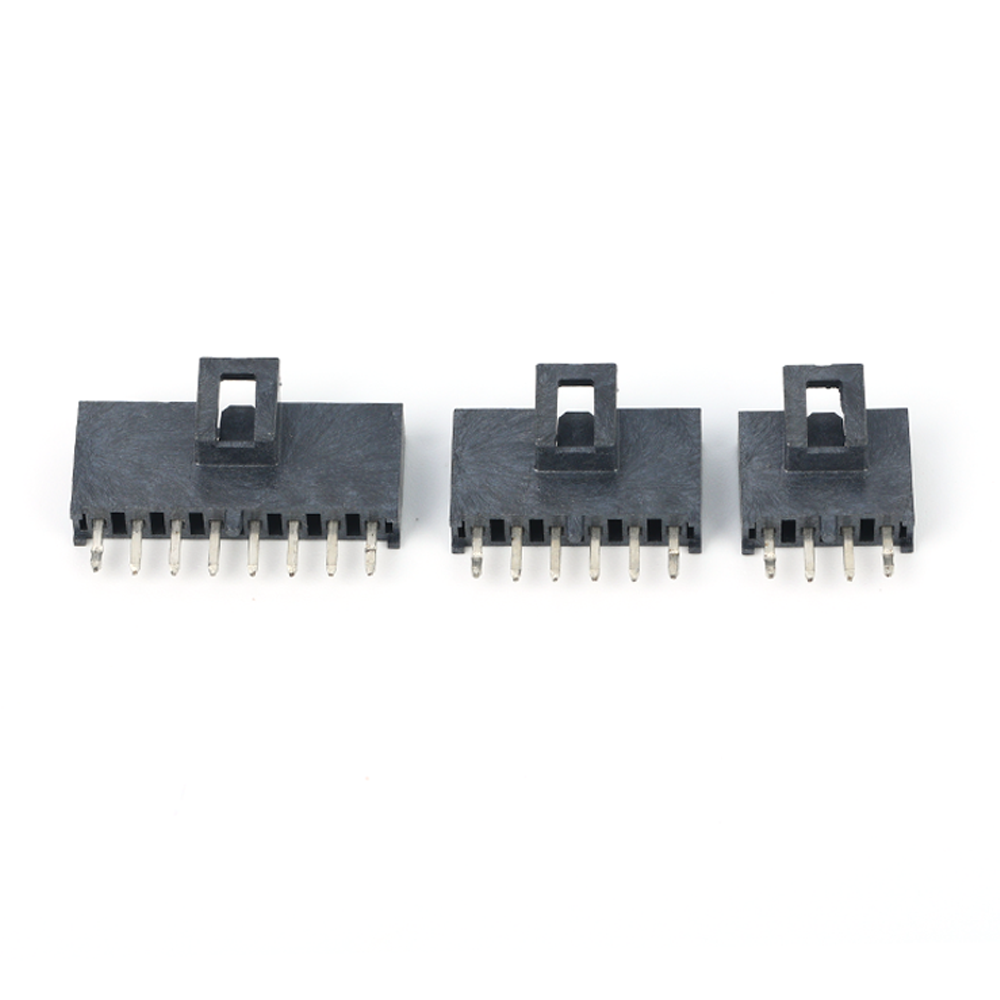

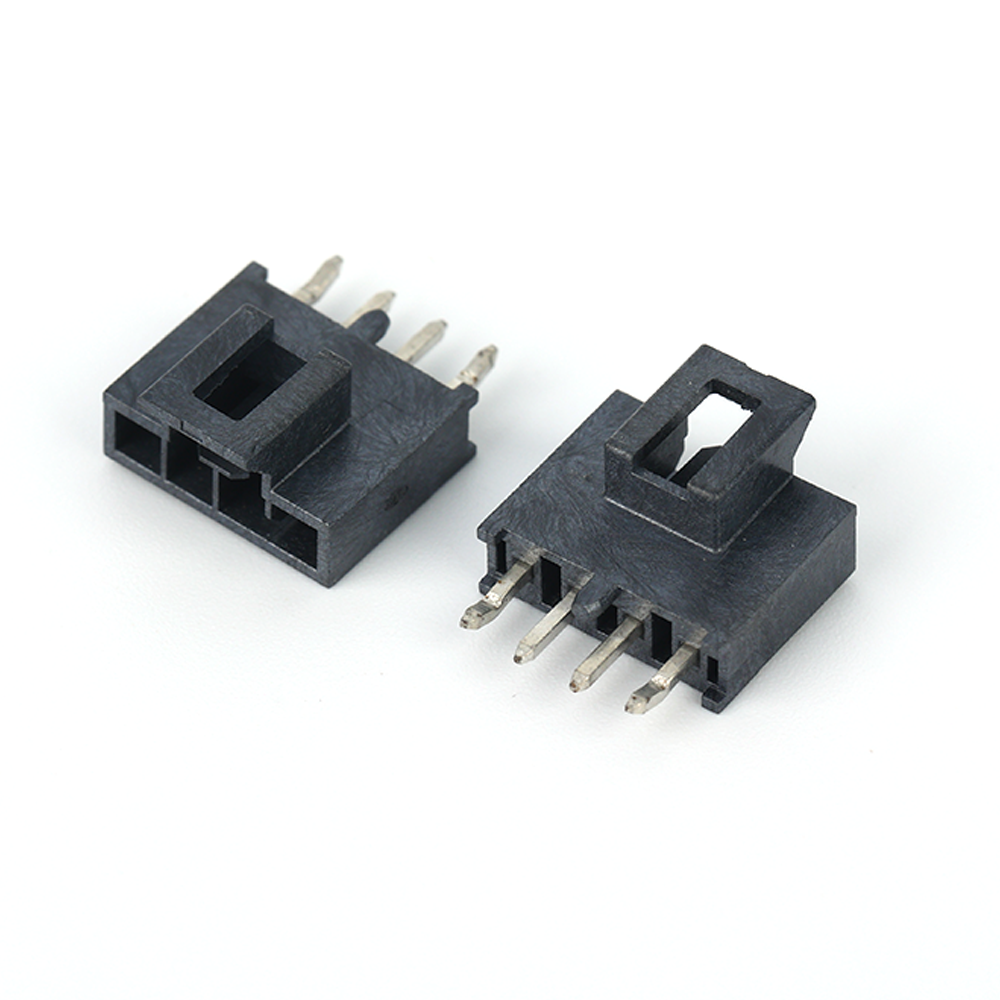

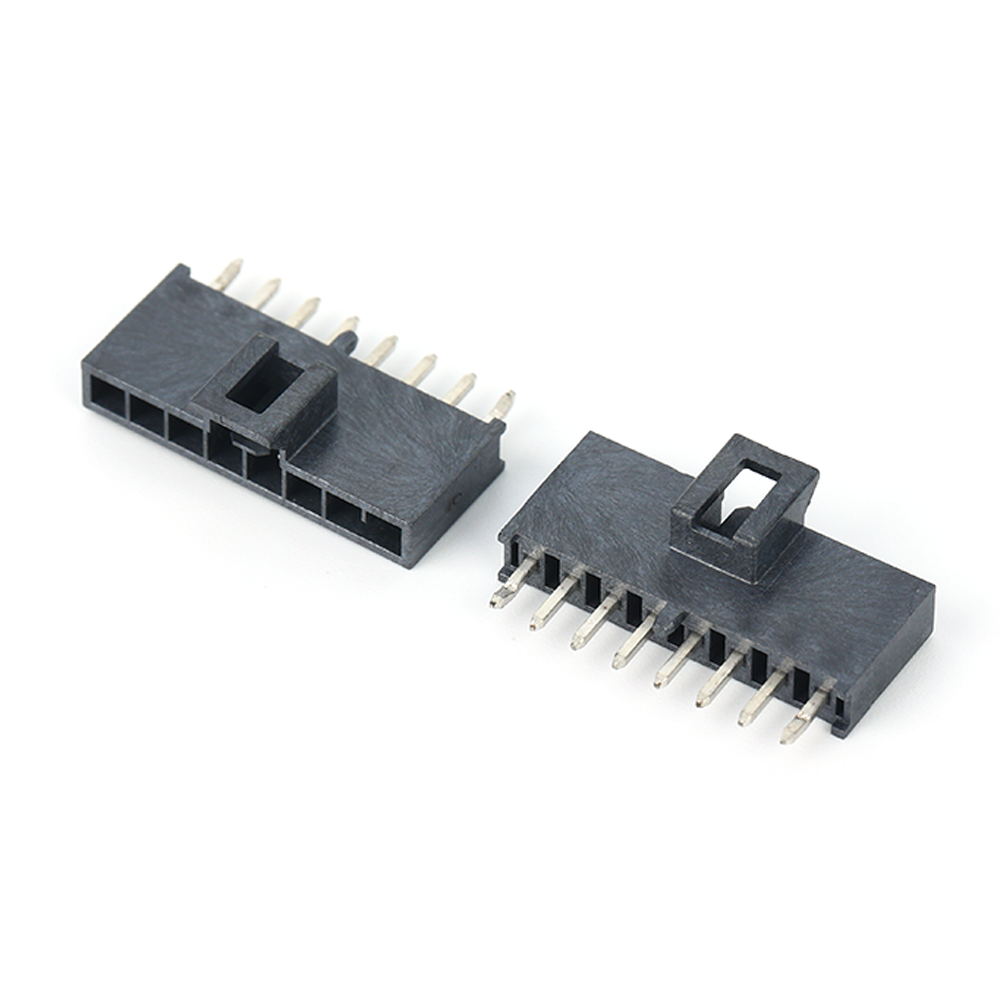

1. Product series ：H2500S10
2. Type of connection：Wire-to-Board
3. Pitch of Product：2.50mm
4. Rated current：8A at 10A
5. Rated Voltage：400V AC(RMS) or 400V DC Max
6. Contact material：High conductivity copperalloy
7. Insulation material ：LCP UL94V-0 Black/Natual
8. Operation temperature：-40℃~105℃
9. Alternative: MX 105309
