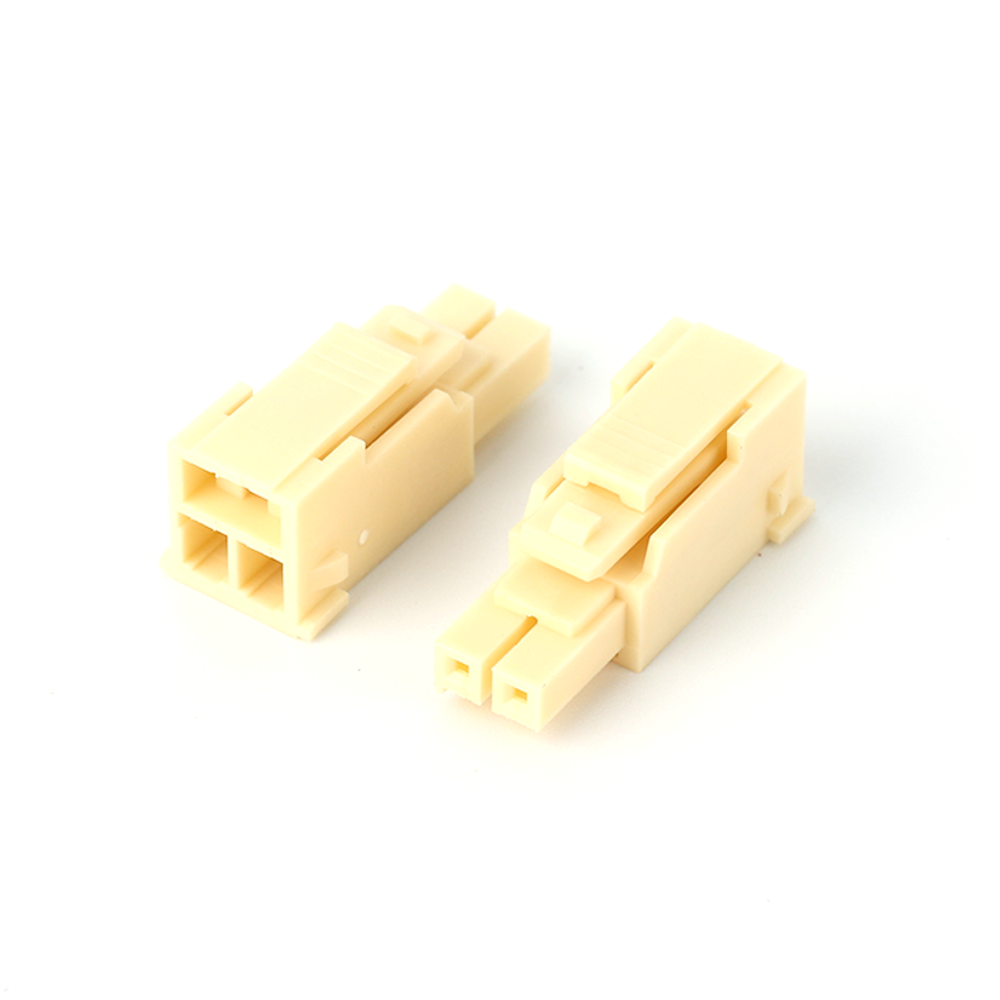

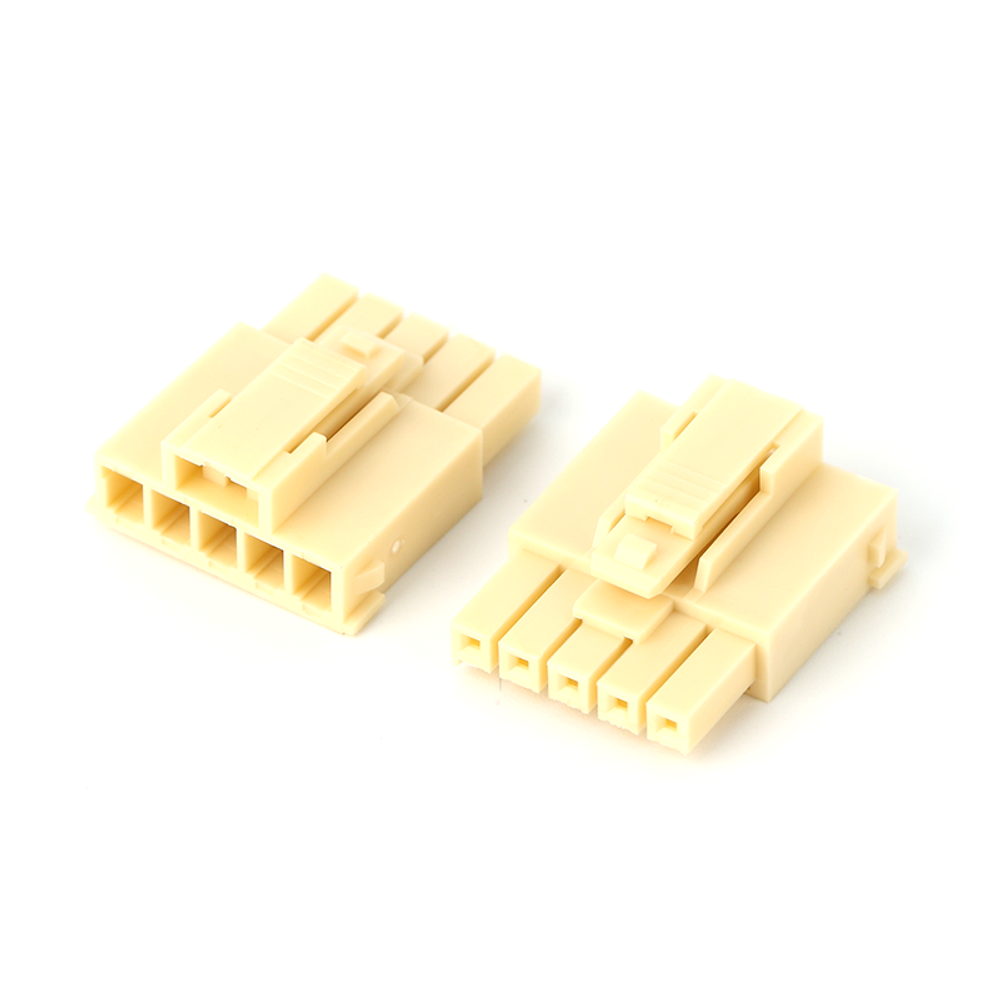

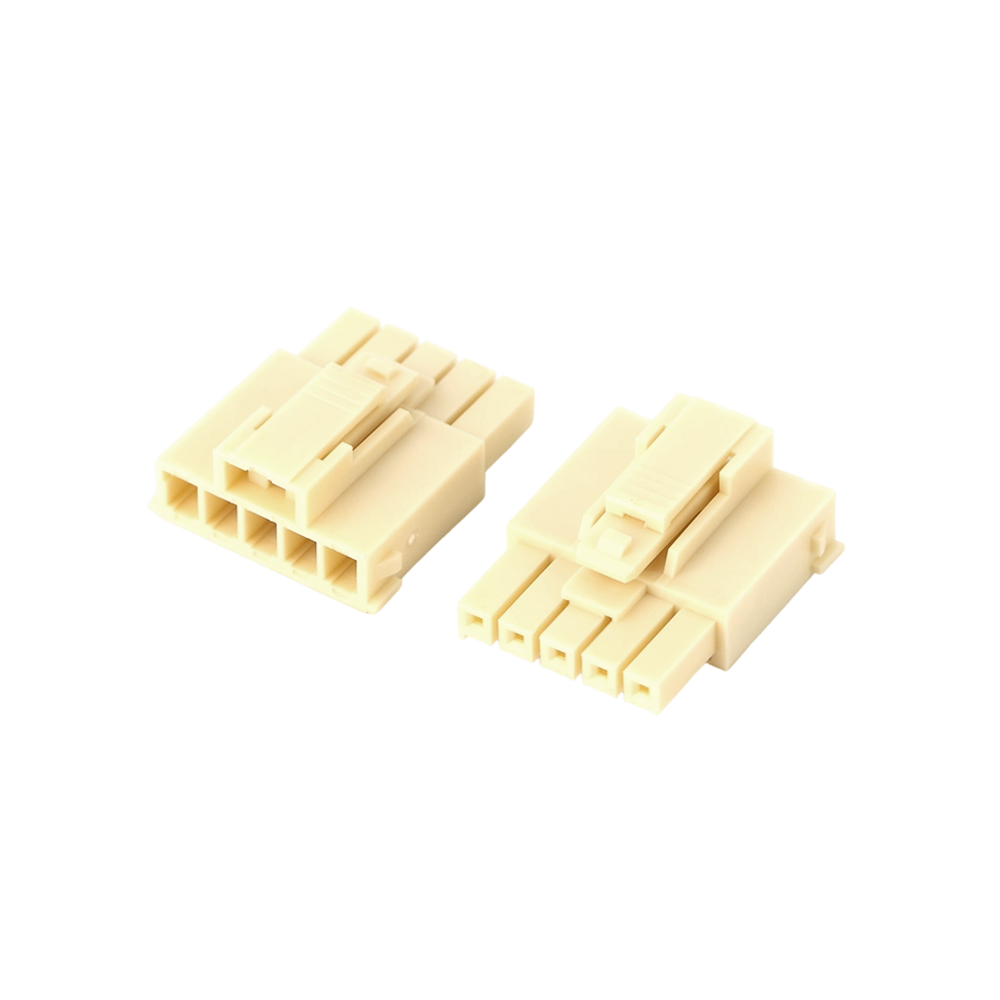

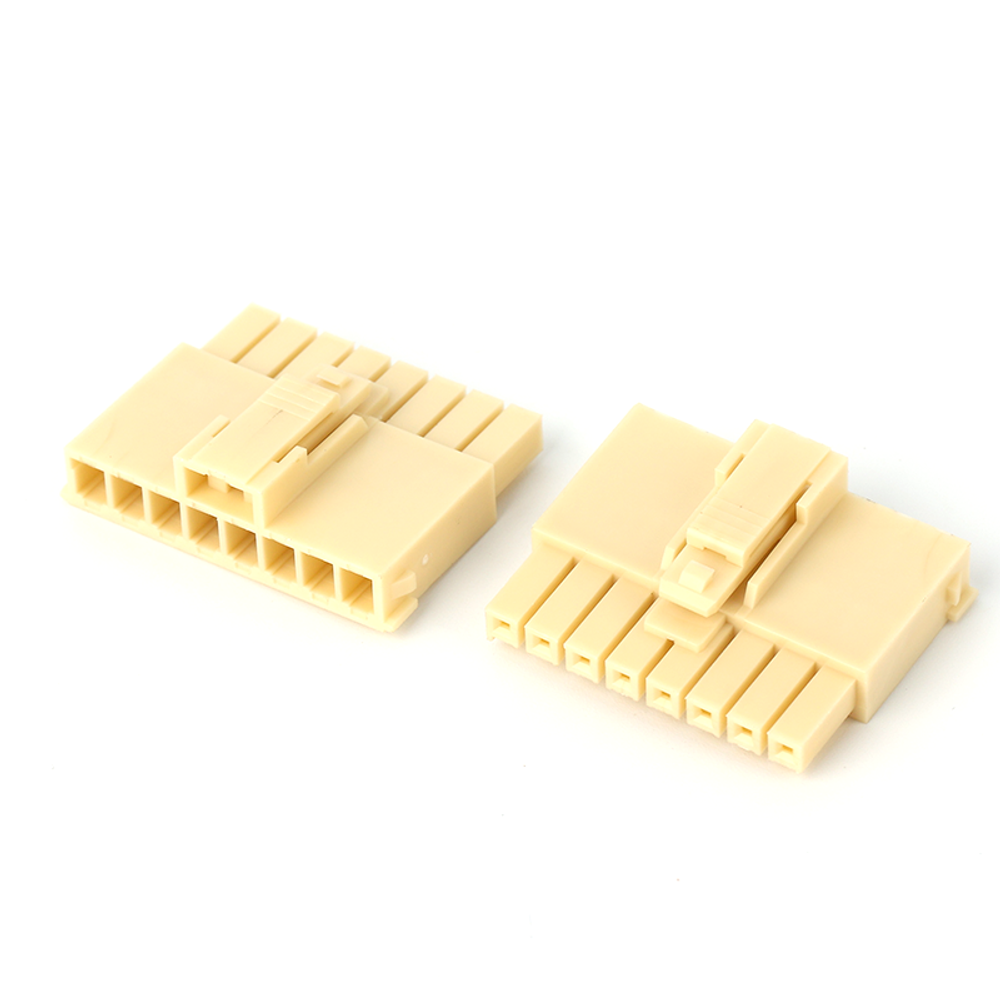

1. Product series ：H3500S10
2. Type of connection：Wire-to-Board
3. Pitch of Product：3.50mm
4. Rated current：14A at 16A
5. Rated Voltage：400V AC(RMS) or 400V DC Max
6. Contact material：High conductivity copper alloy
7. Insulation material ：PA66 UL 94V-0 Black/Natural
8. Operation temperature：-40℃~105℃
9. Alternative: MX 172256 172253
