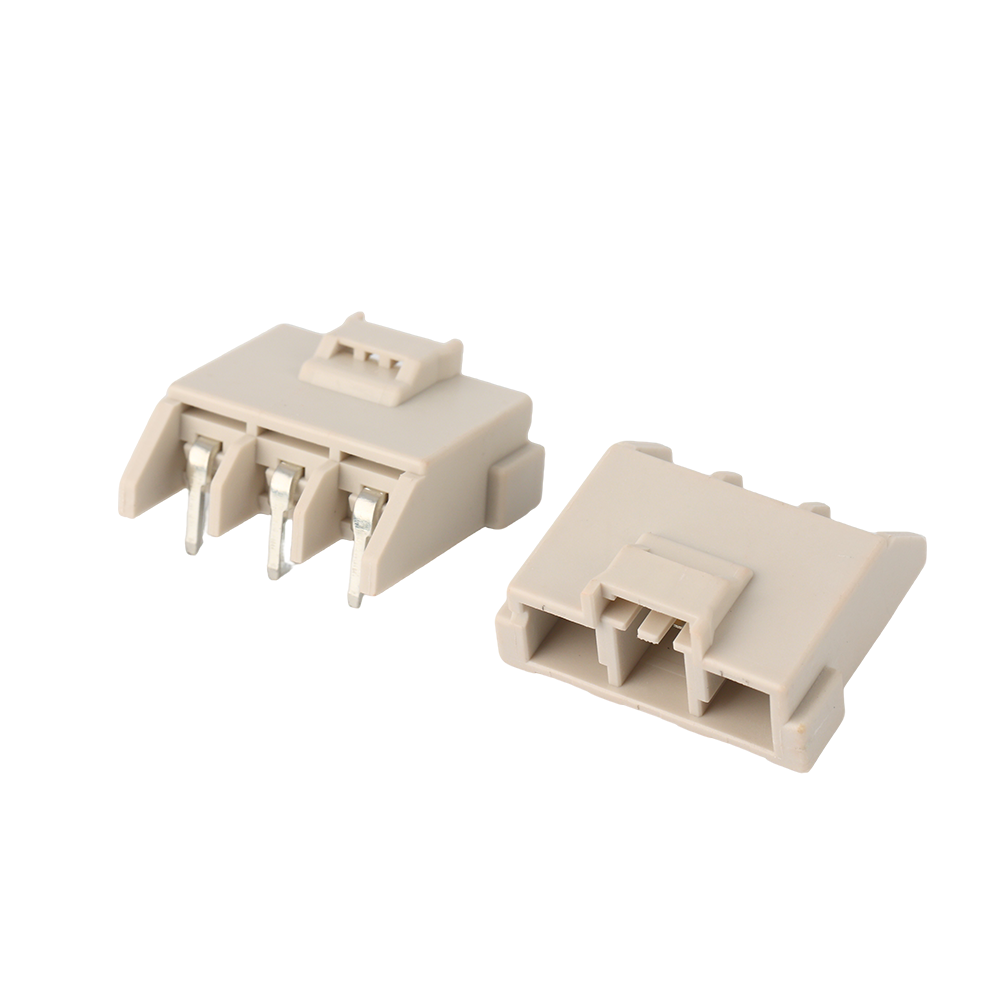

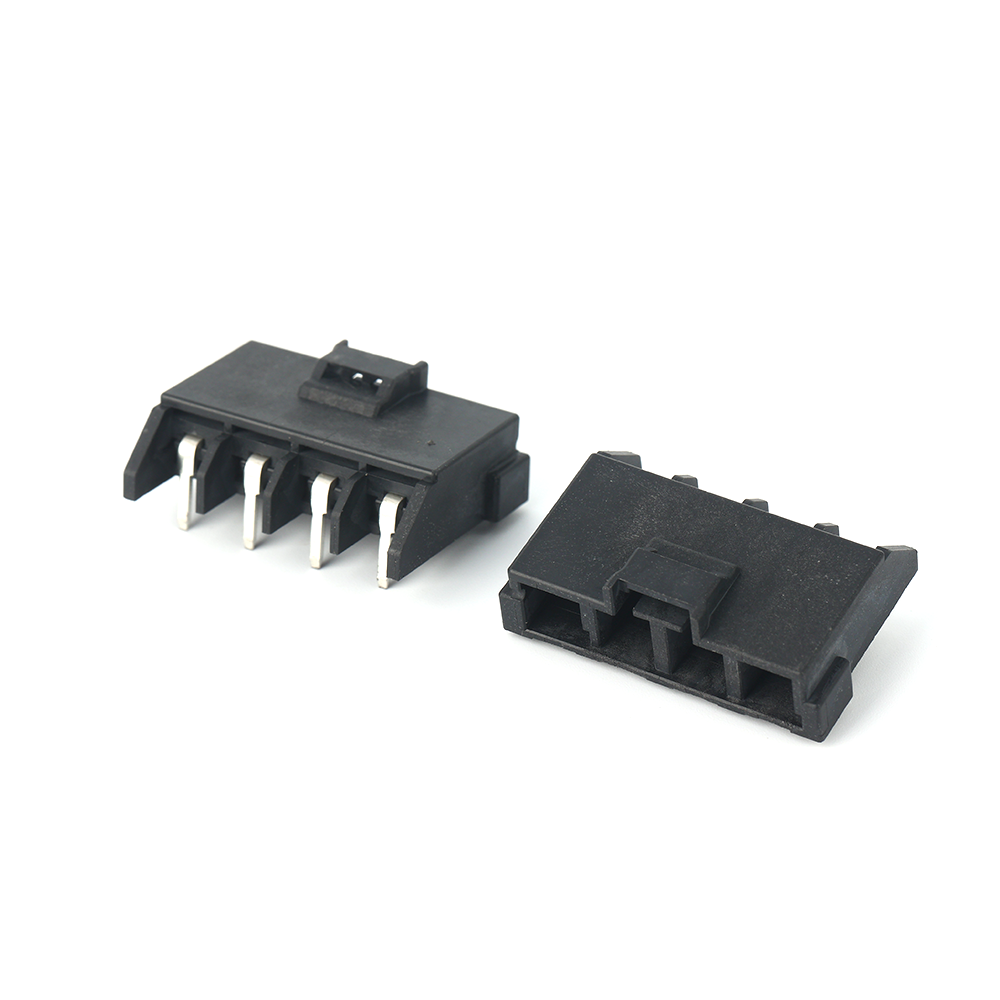

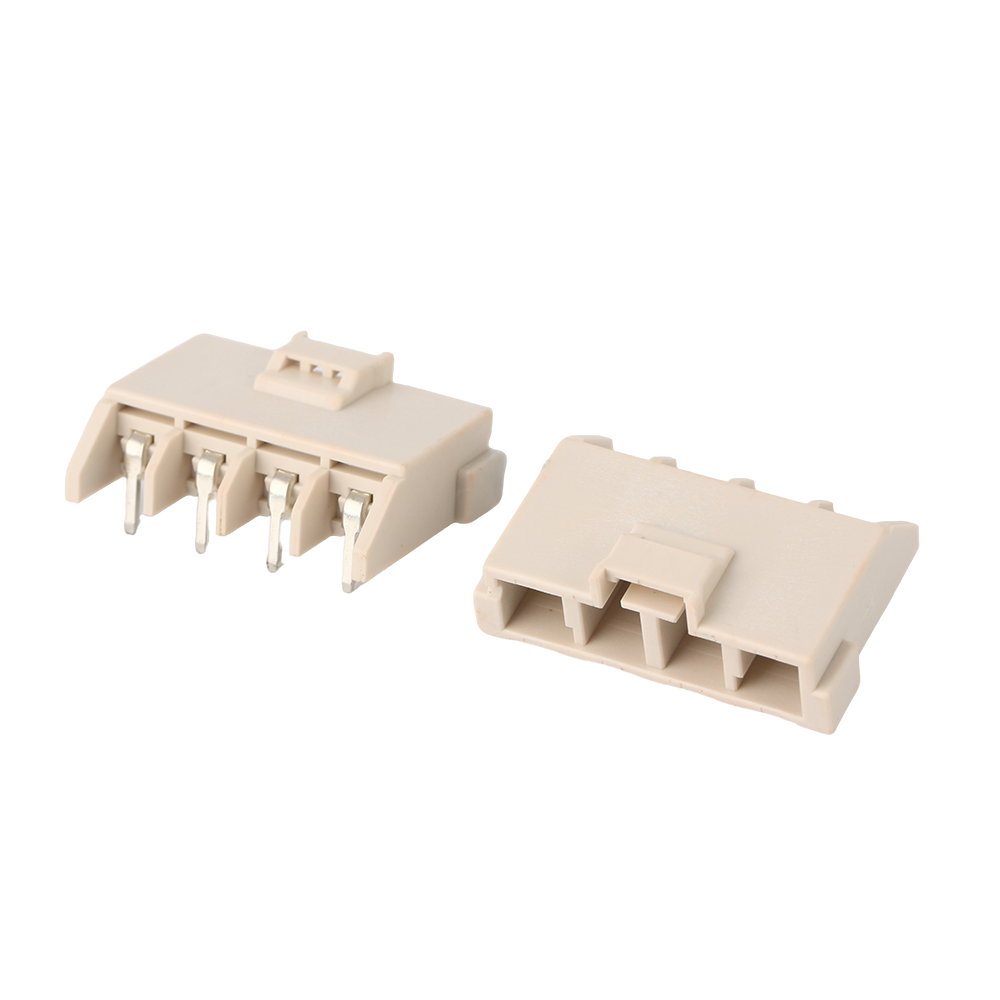

1. Product Series: H7920S10
2. Connection Type: Wire-to-Board
3. Pitch: 7.92 mm
4. Number of Positions: 1, 2, 3, 4, 5 Positions
5. Mounting Orientation: Vertical
6. Rated Current: 30 A
7. Rated Voltage: 600 V
8. Contact Material: Phosphor Bronze
9. Insulator Material: PA66+30%GF UL 94 V-0
10. Operating Temperature: -35°C to +90°C
11. Applications: Industrial Robots | CNC & PLC Systems | Machine Tools |
Semiconductor Equipment |Production Lines | Inverters |
Power Regulators | MRI & CT Equipment |
Printers & Copiers | Power Tools
