3.0mm wire-to-board connector

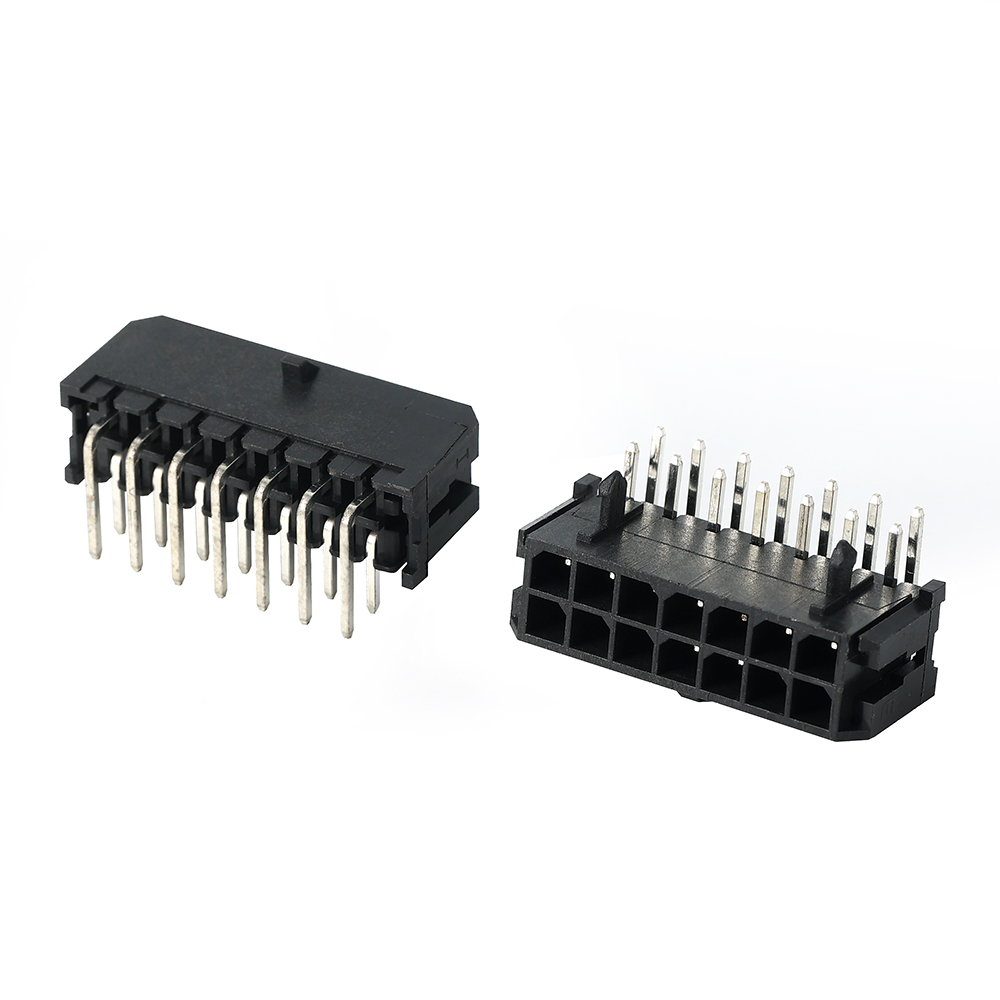

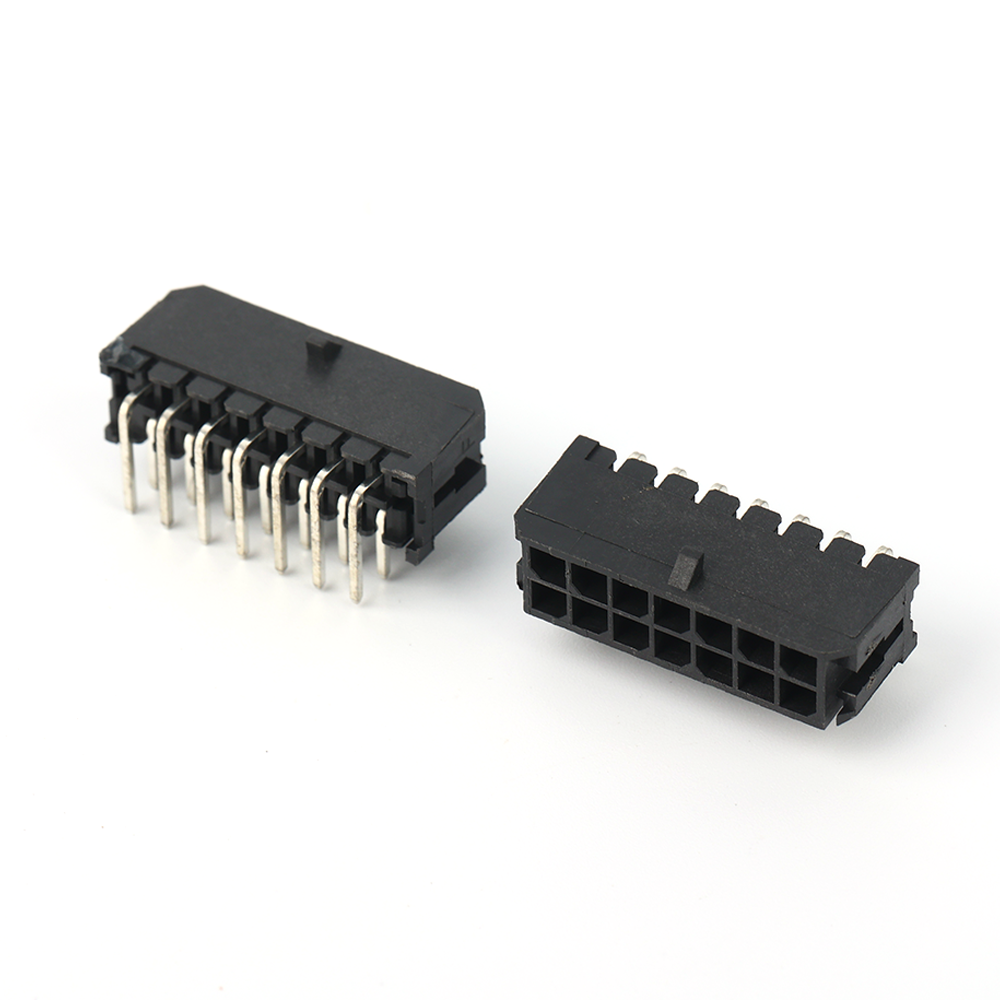

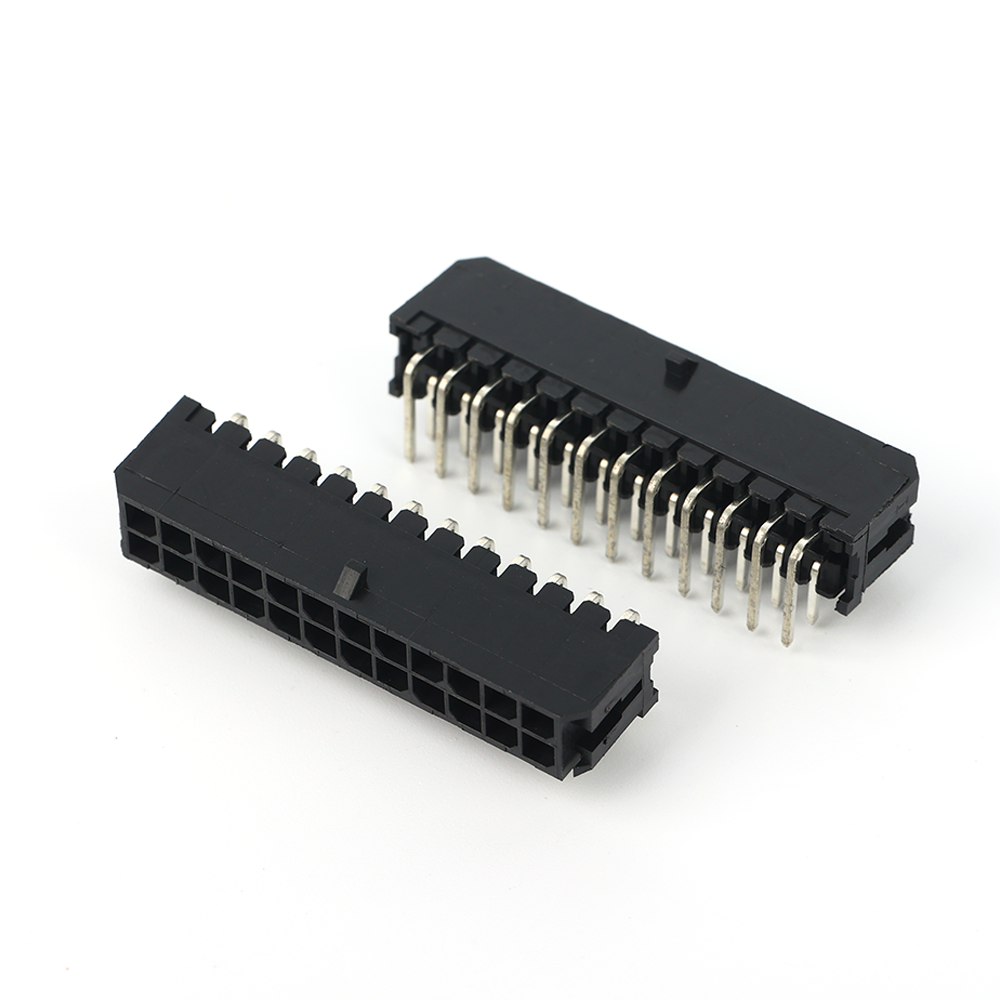

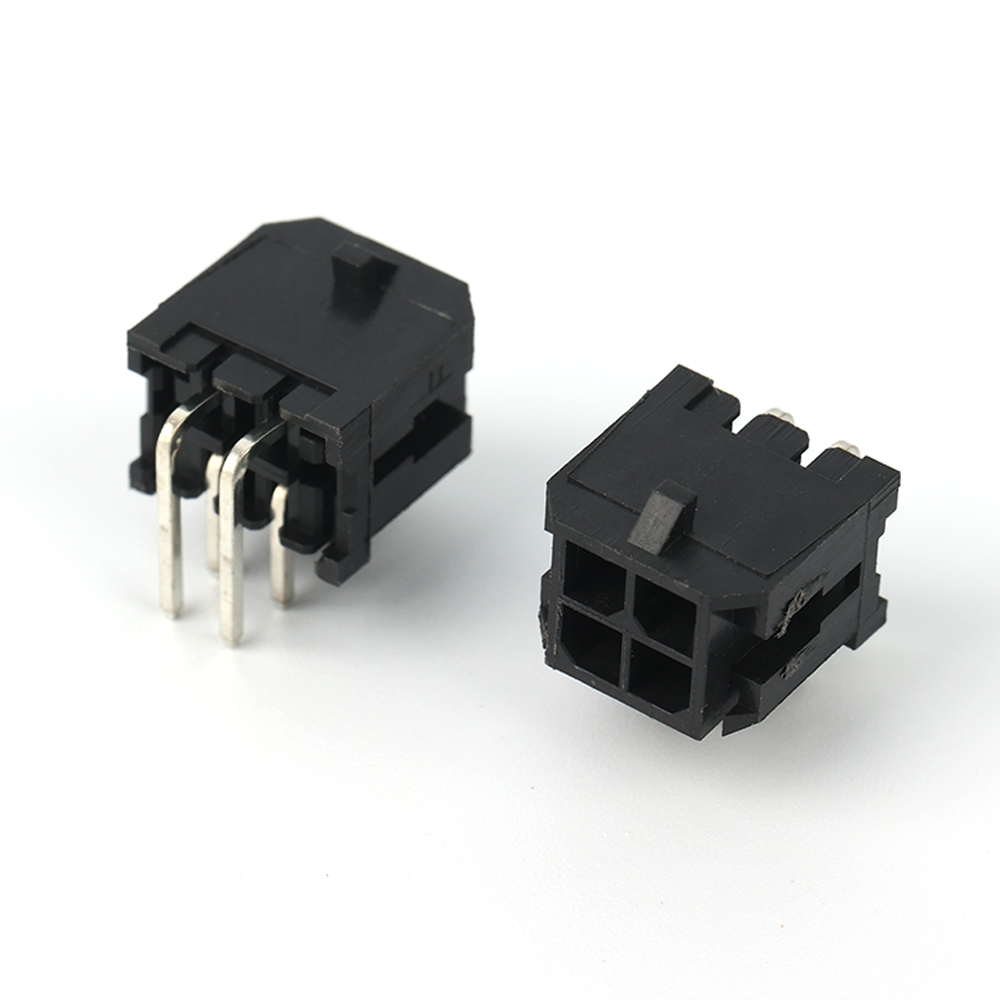

3.00mm Pitch Dual Row Right-Angle Header

1. Product series ：H300010


2. Type of connection：Wire-to-Board


3. Pitch of Product：3.00mm


4. Rated current：5A  AC/DC


5. Rated Voltage：250V AC(RMS) or 250V DC Max


6. Contact material：Brass


7. Insulation material ：Pa66＋15%GF  UL94V-0， Black color


8. Operation temperature：-20℃~+85℃


9. Alternative: MX 43045


Download of 2D drawings
