3.0mm wire-to-board connector

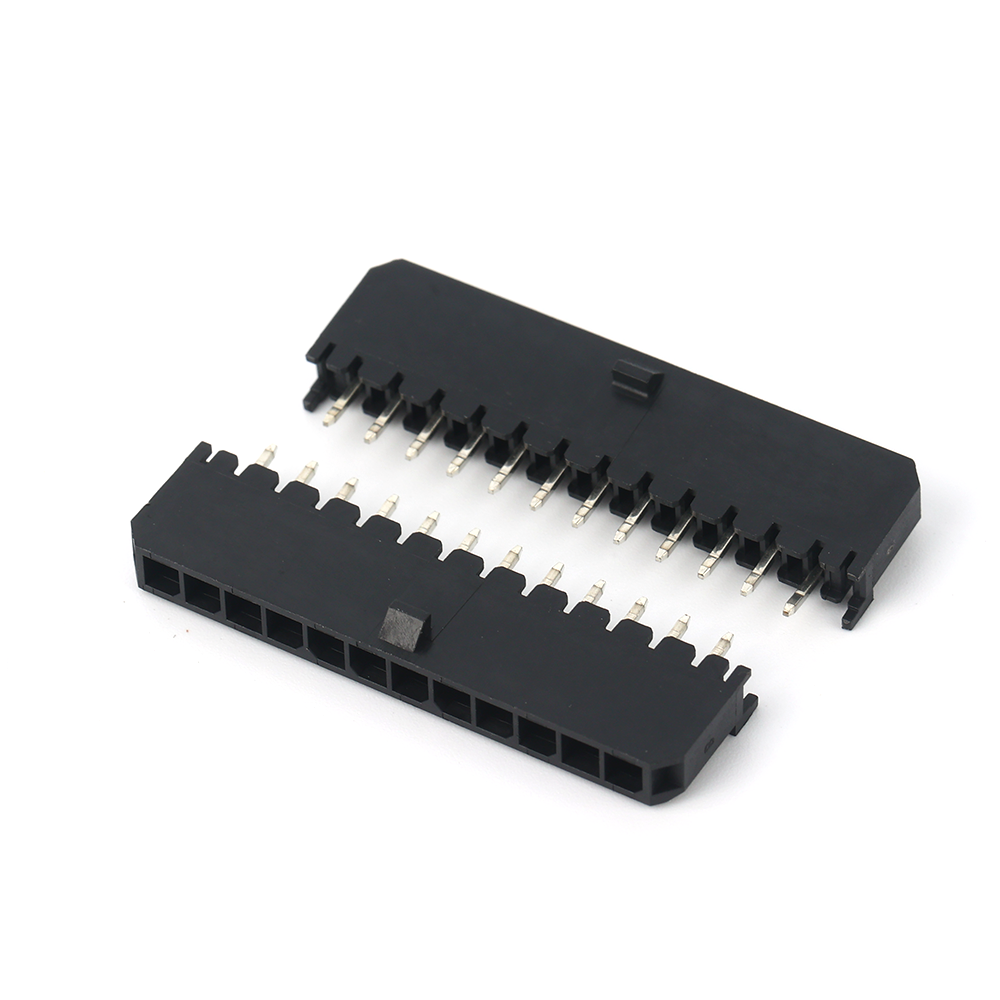

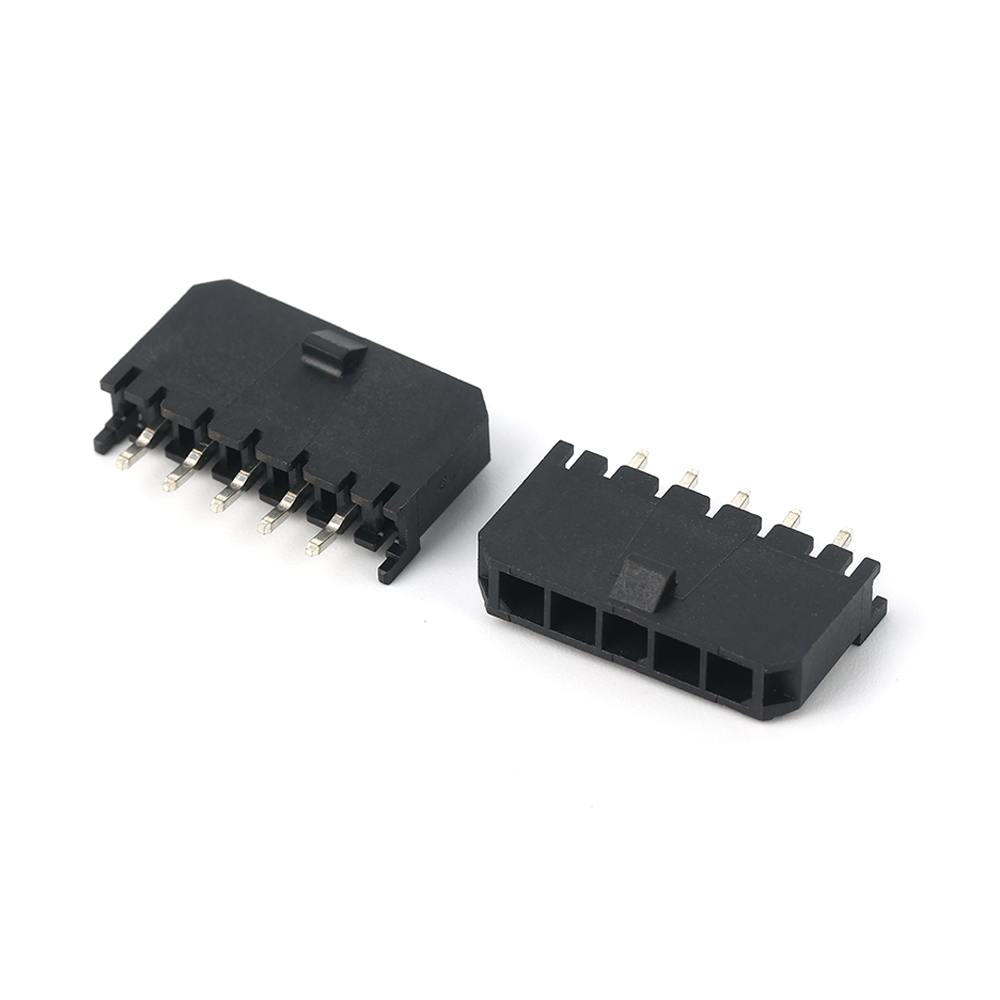

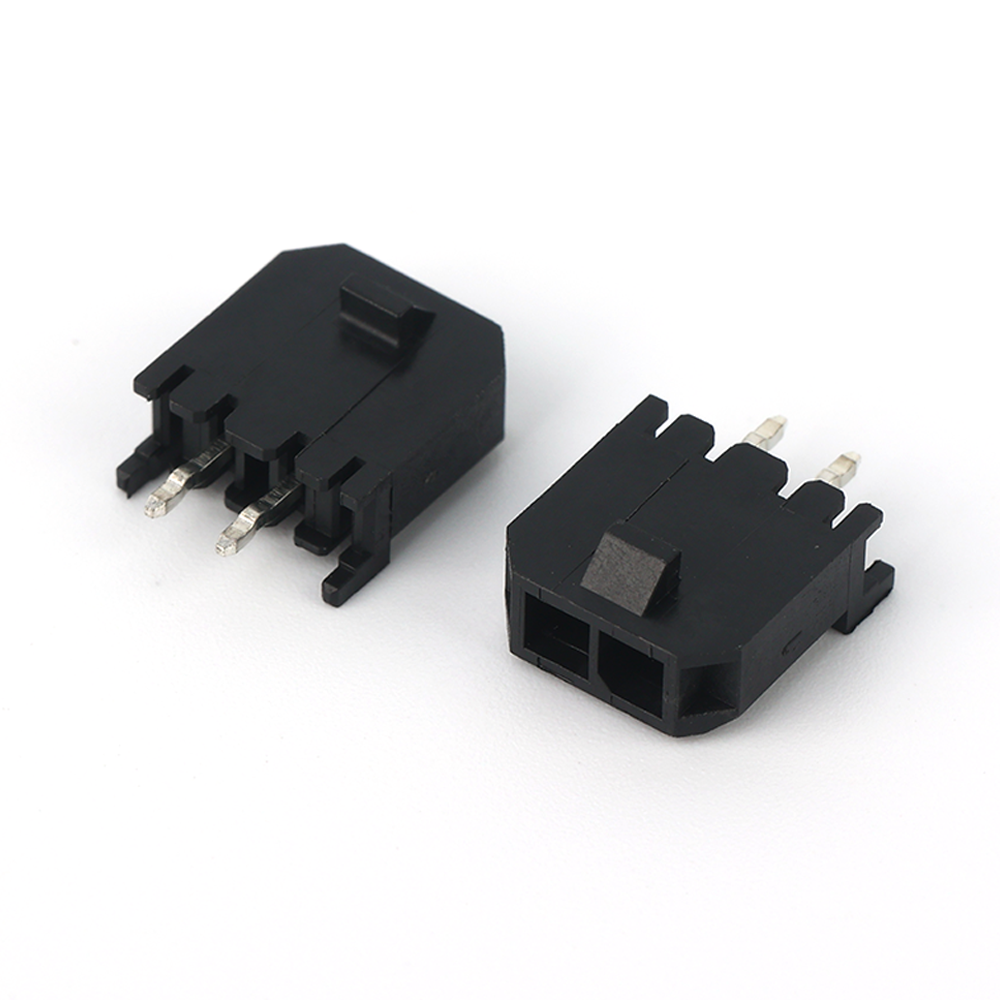

3.00mm Pitch Single Row Vertical Header

1. Product series ：H3000S10


2. Type of connection：Wire-to-Board


3. Pitch of Product：3.00mm


4. Rated current：5A  AC/DC


5. Rated Voltage：250V AC(RMS) or 250V DC Max


6. Contact material：Brass


7. Insulation material ：250V AC(RMS) or 250V DC Max


8. Operation temperature：-20℃~+85℃


9. Alternative: MX 43650


Download of 2D drawings
